The best pin vises for miniature modelling
A centred hole matters more than raw speed.
The Army Painter TL5031 is the easiest miniature-specific starter set. Modelcraft costs less and includes five useful bits; Tamiya's 74112 adds the best grip and chuck range but requires a separate bit set.
Quick answer
Which pin vise should you buy?
Buy The Army Painter if you want a miniature-focused drill and three common pinning sizes in one box. Choose Modelcraft for the lowest complete price. Pick Tamiya when control and comfort justify buying a proper micro-bit set separately.
- 01
Modelcraft includes five bits from 1.0 to 1.8 mm and two reversible collets, enough for many beginner pins and magnets.
- 02
The Army Painter's 1.0, 1.4 and 1.8 mm bits align with common miniature tasks, and its larger body is easier to manage than a bare metal tube.
- 03
Tamiya accepts approximately 0.1–3.2 mm shanks and adds an elastomer grip plus a smooth rotating end, but the purchase is handpiece-only.
The picks

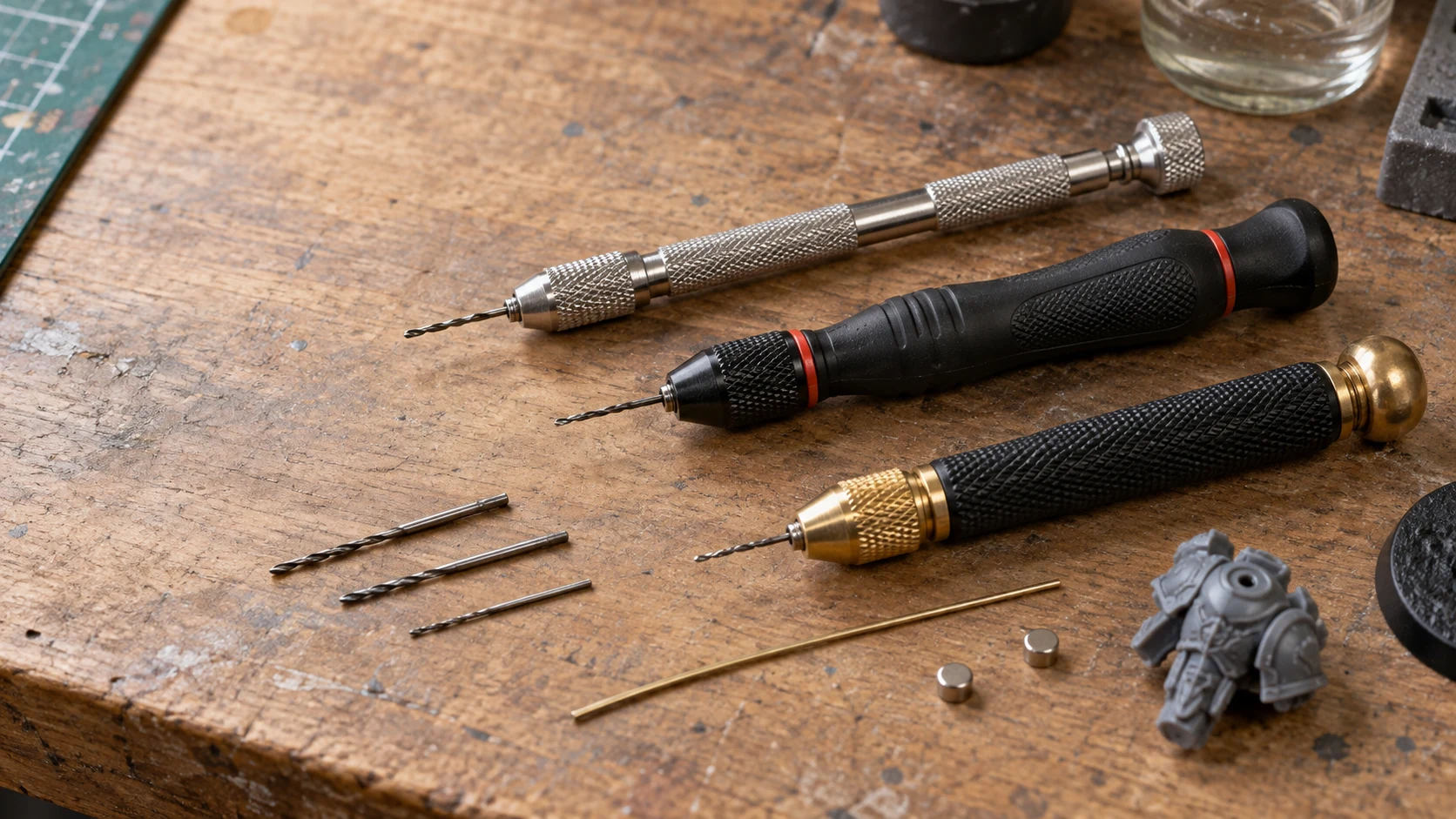

The three pin vises
Each is a hand drill, not a powered rotary tool. Slow rotation reduces heat, wandering and sudden damage to small resin or plastic parts.
Modelcraft Double-Ended Swivel-Top Pin Vice with 5 Bits
Best for: First plastic-miniature pinning jobs using common 1.0–1.8 mm holes
Five useful bit sizes and reversible collets make PPV2237 genuinely ready for simple pins and small magnets. The metal body is compact and the swivel end allows steady palm pressure. It gives more documented box contents than many generic marketplace sets.
- Lowest representative complete-set price
- Five useful included bit sizes
- Two reversible collets cover a broad shank range
- Slim all-metal grip is less comfortable for long sessions
- No sub-1 mm bit is included
The Army Painter Miniature and Model Drill
Best for: Beginners drilling infantry bases, weapon joints and common magnet sizes
The wider hobby-style body is easier to index than Modelcraft's slim tube, and 1.0, 1.4 and 1.8 mm cover many common pinning jobs without an overwhelming bit assortment. The product is designed and documented specifically for miniatures.
- Ergonomic miniature-focused body
- Three practical starter bit sizes
- Chuck accepts additional bits up to about 3 mm
- Only three bits on the established Amazon configuration
- Product refresh makes box contents worth checking carefully
Tamiya Fine Pin Vise D-R
Best for: Frequent drilling across very fine holes and larger magnet work with separately chosen bits
Tamiya's elastomer grip and ball-bearing end directly improve the two things a hand drill does: resist slipping and rotate smoothly under palm pressure. Its 0.1–3.2 mm stated range is the broadest here, so the handpiece can stay while the bit set improves.
- Most comfortable documented grip
- Smooth ball-bearing rotating end
- Broad 0.1–3.2 mm capacity
- Highest price before buying any bits
- Premium handpiece cannot compensate for poor-quality or misused micro-bits
Practical limits
What the specification does not solve
Chuck capacity only says what fits. Clean holes depend on bit quality, alignment and material support.
Start the hole
Mark the centre with an awl point or the tip of a sharp hobby knife, using only enough pressure to create a shallow seat for the bit.
Match the diameter
Choose the pin or magnet first, then test the bit on scrap. Nominal wire and cheap bit sets can vary enough to change the fit.
Support the part
Hold the miniature in a padded clamp or against a stable surface. Tiny ankles and weapon wrists can flex or split if squeezed by hand.
Clear swarf
Advance a little, withdraw the bit and clear debris. Forcing a loaded micro-bit is the fastest route to a snapped tip.
How we chose
How we chose pin vises
{"lead":"We required exact UK ASINs, positive manual control, a rotating palm end and enough chuck range for common miniature pins and magnets.","points":["Manufacturer or specialist pages established collets, bits and stated capacity; independent review and community reports were used for comfort and recurring failure patterns.","The Army Painter wins on beginner completeness, Modelcraft on price, and Tamiya on the handpiece itself. The ranking does not pretend that bundled bits equal premium bits.","Powered rotary tools and large twist-drill sets were excluded because speed, run-out and brittle micro-bits create a different risk profile."]}
Safety
Drilling and pinning safely
Micro-bits are sharp and brittle; clipped wire can travel farther than expected.
- Wear eye protection when drilling brittle resin or clipping brass or steel pinning wire. Shield the offcut and use cutters rated for metal, never fine plastic sprue nippers.
- Keep fingers out of the drill path and never brace a tiny part against your palm. Use a padded holder when the geometry is awkward.
- Turn slowly without side pressure. Stop if the bit bends, chatters or binds; withdraw it before changing angle.
- Control resin and metal dust with the material maker's recommended extraction and PPE, and clean the bench without blowing dust into the room.
Sources
Sources and checking notes
Maker specifications establish capacity and included bits; independent and owner sources inform grip, breakage and pinning technique.
-
01
Modelcraft · Pin-vice range
Manufacturer-range context for swivel-top pin vises and reversible collets.
Open source -
02
Vanguard Models · Modelcraft PPV2237
UK specialist specification of two reversible collets and included 1.0, 1.2, 1.4, 1.5 and 1.8 mm bits.
Open source -
03
The Army Painter · Miniature and Model Drill
Manufacturer description of the miniature-specific hand drill and current family of matching bits.
Open source -
04
Tamiya · Fine Pin Vise D-R 74112
Manufacturer specification for elastomer grip, ball-bearing rotating end and 0.1–3.2 mm capacity.
Open source -
05
FauxHammer · Best pin vises for miniatures
Independent comparison covering grip comfort, bit range and suitability for miniature pinning and magnets.
Open source -
06
r/minipainting · Pin-vise recommendations
Current owner discussion including a switch to Tamiya for smoother, more comfortable manual drilling.
Open source -
07
r/minipainting · Pinning method and safety
Community technique on aligning holes, matching wire and using eye protection and metal-rated cutters.
Open source -
08
The Hobby Library · Miniature Painting
Beginner tool and workspace context for assembling and painting miniatures.
Open source -
09
Amazon UK · Modelcraft PPV2237
Exact direct ASIN used for the budget complete-set recommendation.
Open source -
10
Amazon UK · The Army Painter TL5031
Exact direct ASIN used for the miniature-specific recommendation.
Open source -
11
Amazon UK · Tamiya 74112
Exact direct ASIN used for the premium handpiece recommendation.
Open source
Guide information and links checked 15 September 2026.
